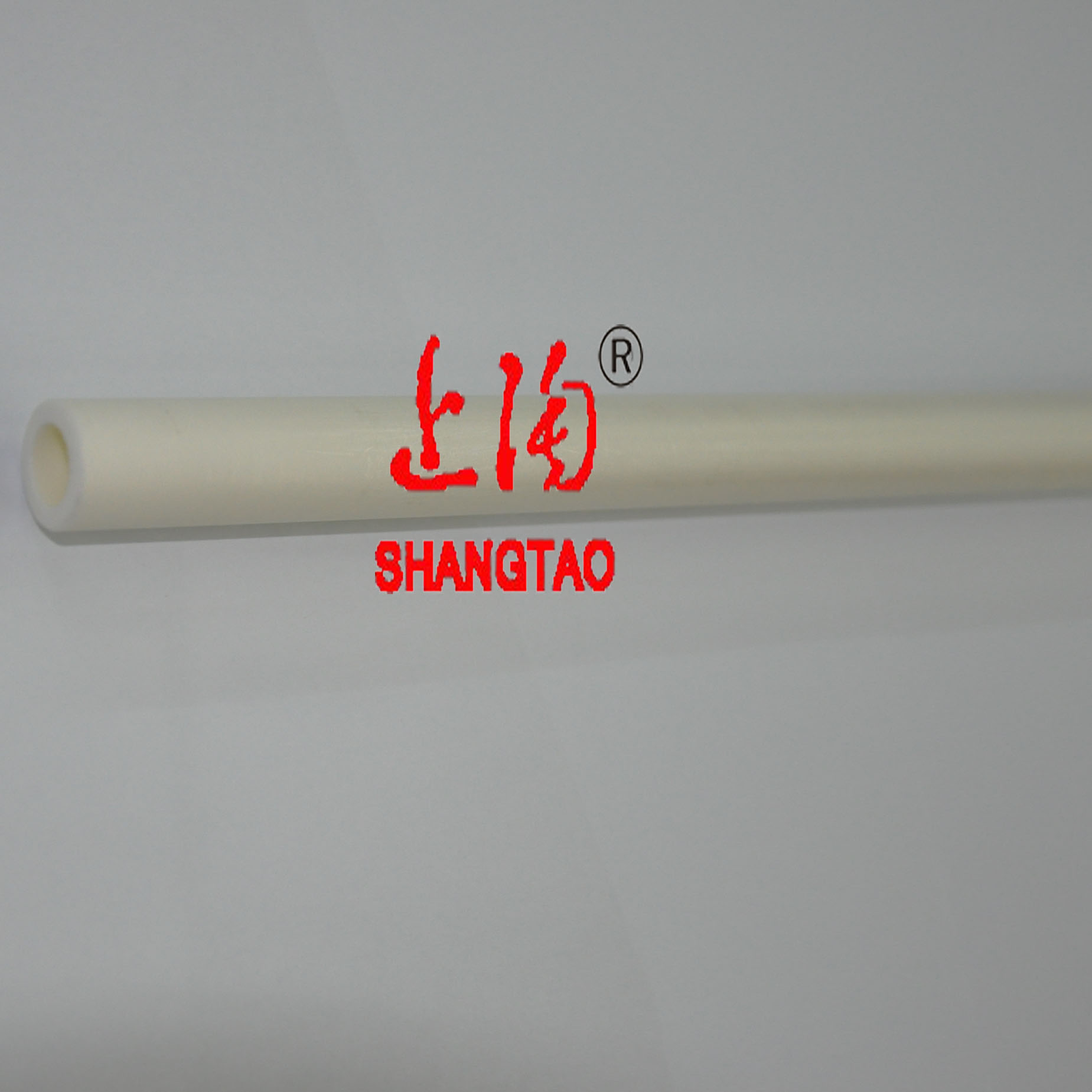

Full Stabilized Zirconia Tube
Specification:
|
No. |
Size (OD/ID) x Length |
|
1 |
10/6*300 |
|
2 |
10/6*435 |
|
3 |
12.5/9.5*300 |
|
4 |
12.5/9.5*400 |
|
5 |
12*10*432 |
|
6 |
12.5/9.5*435 |
|
7 |
17.5/11.1*225 |
|
8 |
17.5/10.5*226 |
|
9 |
17.5/11.1*300 |
|
10 |
17.5/11.1*460 |
|
11 |
17.5/11.1*465 |
|
12 |
17.5/11.1*500 |
|
13 |
18.5 (＋/-0.50)*12(+/-.50)*430+/-1 |
|
14 |
18.5*12*458 |
|
15 |
21.7/17.5*500 |
Technical Parameter:
|
Item |
Index |
|
Property |
8Y-YZP |
|
Material |
14.5wt%Y2O3+85.5wt%Zro2 |
|
Construction of crystal |
High temperature hexahedron Low temperature Quartet |
|
Density(g/cm3) |
6.04 |
|
Bending strength(Mpa)20C |
200-300 |
|
Fracture toughness KIC 20C (Mpa m1/2) |
2.3 |
|
Hardness(HV)20C |
1000 |
|
Thermal conductivity W/mk |
27 |
Specific heat (J/g/k) |
0.45 |
|
Thermal expansion coefficient*106/C 20C-100C |
10 |
|
Melting point |
2715℃ |
|
Temperature measuring range |
0~~~2300℃ |
|
Application environment |
Furnace with corrosive gas
|
