Description
Ceramic Tower Packing
has excellent acid resistance and heat resistance. It can standup to corrosion of various inorganic acids. Organic acids and organic solvents except HF can be used in high or low temperature. Application range is very wide for drying. Adsorbing, cooling and regenerating tower in chemical metallurgic coal as and separation industry etc.
Specification of Ceramic Tower Packing
|
Type/Name |
size |
D*H*δ
m3 |
Specific area
m2/m3 |
Void volume
m3/m3 |
Number per volume
n/m3 |
Bulk density
Kg/m3 |
|
Conjugate Ring |
φ25 |
25*25*3 |
175 |
0.78 |
74000 |
490 |
|
Φ38 |
38*38*4 |
118 |
0.80 |
13926 |
470 |
|
Φ50 |
50*50*5 |
72 |
0.80 |
7050 |
470 |
|
Rasching Ring
|
Φ6 |
6*6*2 |
789 |
0.73 |
3110000 |
737 |
|
Φ10 |
10*10*2 |
440 |
0.7 |
720000 |
700 |
|
Φ16 |
16*16*2 |
305 |
0.73 |
192500 |
730 |
|
Φ25 |
25*25*2.5 |
190 |
0.78 |
49000 |
505 |
|
Φ50 |
50*50*5 |
93 |
0.81 |
6000 |
457 |
|
Φ80 |
80*80*9.5 |
90 |
0.68 |
1910 |
714 |
|
Casade Ring
|
Φ25 |
25*15*3 |
270 |
0.74 |
74000 |
624 |
|
Φ50 |
50*30*5 |
108.8 |
0.787 |
9091 |
516 |
|
Φ76 |
76*45*7 |
63.4 |
0795 |
2517 |
426 |
|
Supper Intalox Ring |
Φ25 |
25*20*3 |
190 |
0.75 |
56933 |
580 |
|
Φ38 |
38*30*4 |
131 |
0.78 |
15400 |
490 |
|
Φ50 |
50*42*5 |
88.4 |
0.79 |
6450 |
454 |
|
Φ76 |
76*53*8 |
58.5 |
0.80 |
1976 |
420 |
|
Ceramic intalox saddle |
Φ16 |
16*12*3 |
378 |
0.71 |
269900 |
686 |
|
Φ25 |
25*20*3 |
200 |
0.727 |
58230 |
602 |
|
Φ38 |
38*30*4 |
131 |
0.741 |
17250 |
570 |
|
Φ50 |
50*42*6 |
105 |
0.765 |
7384 |
520 |
|
Φ76 |
76*53*9 |
76 |
0.77 |
2400 |
507 |
|
Pall Ring
|
Φ25 |
25*12*3 |
220 |
0.73 |
40500 |
620 |
|
Φ38 |
38*19*4 |
150 |
0.75 |
14700 |
570 |
|
Φ50 |
50*25*5 |
120 |
0.78 |
6800 |
550 |
|
Φ76 |
76*38*9 |
75 |
0.8 |
2050 |
520 |

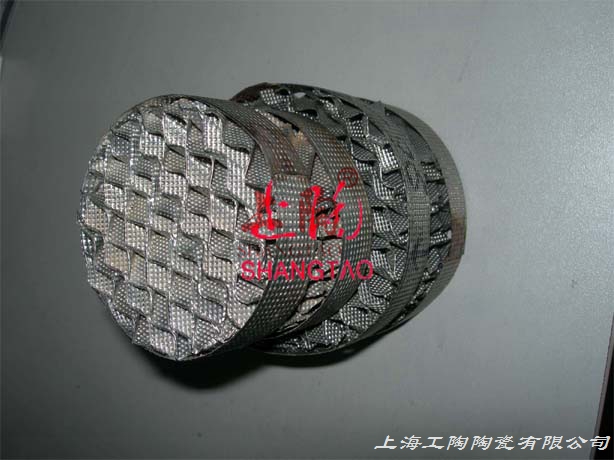

Product Photo
