Fireclay crucible
2013-06-16 11:02

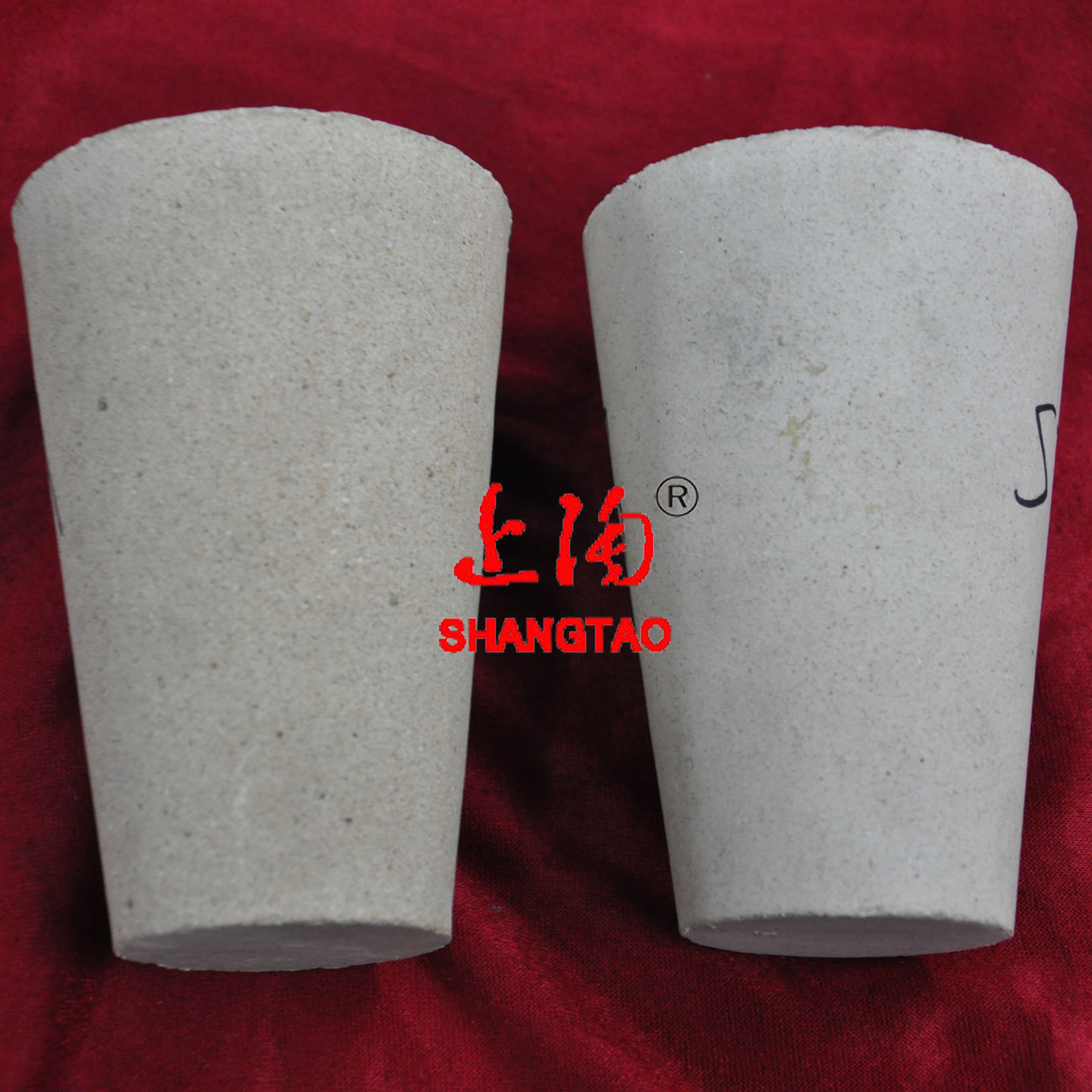

Fireclay crucible

model	OD(mm)	ID(mm)	Outside height (mm)	Inside height (mm)	bottom OD (mm)	Memo
STJT-1	80	70	80	66	55
STJT-2	90	78	105	85	55
STJT-3A	93	80	115	95	55
STJT-3B	95	80	125	105	55
STJT-4	93	82	135	110	55
STJT-5	93	82	135	115	55
STJT-G5	90	80	155	136	55
STJT-6	95	83	140	118	48
STJT-CK4A	80	62	130	110	42	export,thick
STJT-CK5A	90	82	132	120	55	export,thin
STJT-CK5B	88	80	132	118	50	export,thin
STJT-CK6A	108	90	140	125	55	export,Bilateral
STJT-CK8A	110	95	155	135	55	export,Bilateral
STJT-CK8B	105	95	155	132	55	export,thick
STJT-CK8C	90	84	165	150	55	export,thin

Memo:custom-made is available

Typical properties

Refractoriness 1650 centigrade

Refractoiness under load 1420 centigrade

Al2O3 36%-46%

SiO2 45%-56%

Fe2O3 ≤1%

Characteristics:strong refractoriness and corrosion resistance, impervious and not craze, excluding gold and silver elements, more accurate test results.

The average serial can be used for 2-3 times, the export serial can be used for 3-5 times
