Line Post Porcelain Insulator

Products

1.material:porcelain
2.certificate:ISO9001/14001
3.delivery period:35

1.good service and quality

2.competitive price

3.large production capacity

4.delivery on time

5.accep customers' design

Creepage distance		mm	559
Drying arcing distance		mm	241
Cantilever strength		KN	12.5
Power frequency flashover voltage	Dry	KV	100
Power frequency flashover voltage	Wet	KV	70
Critical impulse flashover voltage	Postive	KV	160
Critical impulse flashover voltage	Nagetive	KV	205
Radio interference voltage	Test to the ground	KV	15
Radio interference voltage	Max. RIV at 1 MHz	KV	100
Net weight		kg	9
Applicable standard		ANSI

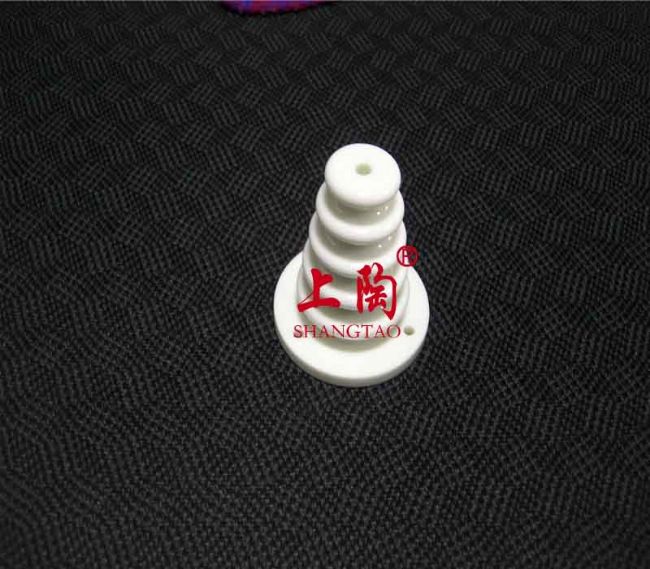

Product Photo
