Gongtao
company specializes in the production and research of machinable ceramic.The
main products:Machinable ceramics and tools, with good machining performance,
good vacuum, high and low temperature resistance, insulation and acid-corrosion
ect properties.It can be widely used in aviation, aerospace,
electronics substrates, high temperature insulation skeleton, ion
plating, vacuum coating, plasma display mirror,ion accelerators, lasers,
and medical devices.

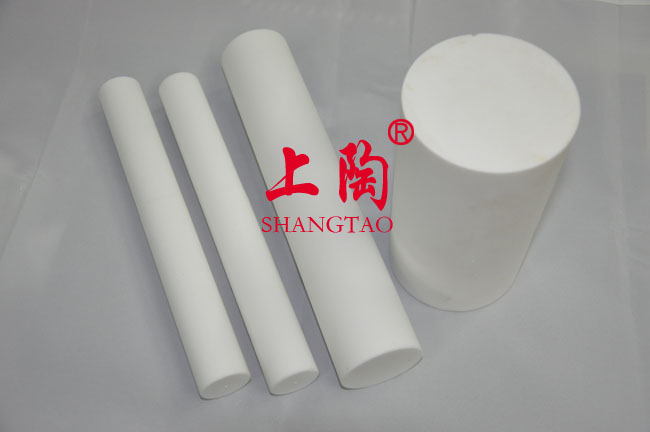

Our machinable ceramic has
good machining performance, and can be turning, milling, grinding,
drilling, drilling and tapping and other machining by ordinary machine tools
and cutting tools.The machining accuracy can reach up
to 5μm, finish high up 0.5μ. It has a good vacuum, high and low temperature
resistance, insulation and acid and alkali corrosion resistance ect
properties.
Thermal shock resistance of machinable ceramic is very
good, quenching from 800 °C to 0 °C,no broken, from 200 °C to 0 °C ,the
intensity does not change.
The
main advantage:
-It can be turned,milled,grinded,drilled and tapped and other
machining.
-Precision machining dimensions.
-Non-magnetic.
Item
|
Standard value
|
Remarks
|
Density
|
2.6
g/m³ |
|
Porosity
|
0.069%
|
|
Water
absorption |
0
|
|
Hardness
|
4-5
|
Mohs |
Color
|
Pure
white |
|
Thermal
expansion coefficient |
72×10-7/°C
|
100°C
~600°C average value |
Thermal
conductivity |
1.71W/m.k
|
25°C
|
Working
temperature |
800°C
|
|
Bending
Strength |
>108MPa
|
|
Compress
strength |
>508
MPa |
|
Impact
Toughness |
>2.56KJ/
m2 |
|
Modulus
of elasticity |
65GPa
|
|
Insertion
loss |
1~
4×10-3 |
Room
temperature |
Dielectric
constant |
6-7
|
" |
Dielectric
strength |
>40KV/mm
|
Thickness of
sample 1mm |
Bulk
density |
1.08×1016Ω.cm
|
25°C
|
1.5×1012Ω.cm |
200°C
|
1.1×109Ω.cm |
500°C
|
Gas
efficiency at normal temperature |
8.8×10-9
ml/s. cm2 |
Vacuum
experienced for eight hours |
Helium
permeatingrate |
1×10-10ml/s
|
After
500C burning,cool to room temperature. |
5%HC1
|
0.26mg/
cm2 |
95°C,24
hours |
5%HF
|
83mg/
cm2 |
" |
Conent:
SiO²
46%
Magnesium oxide
MgO 17%
Aluminium oxide
Al²O3 16%
Potassium oxide
K²O 10%
Boron
oxide B²O 7%
Fluorine-F 4%
