We call alumina ceramic mill pot,grinding pot,mill tank
,mill jar,pop mill ect.

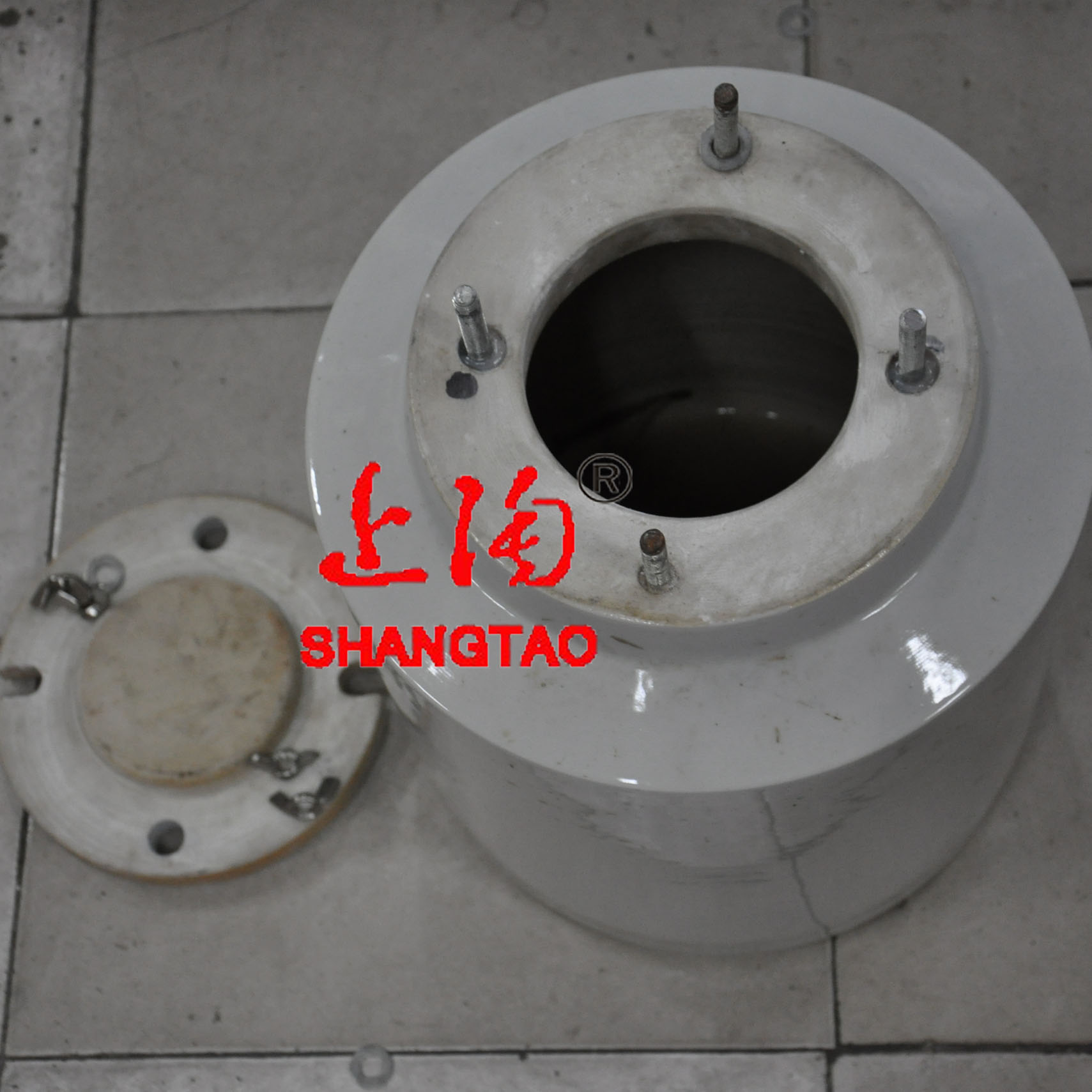

The alumina ceramic mill pot produced by gongtao company
have monolithic construction,big round arc angle.The wall of pot is thick.The
mouth of pot can be sealed and opened easily,tight seal,beautiful sculpt,hard
and durable.Bad phenomena such as gap,leak,material stock,dead space ect can not
occur in use.And Gongtao company can also offer you rock bottom price for 65%
al2o3 ceramic mill pot.
Property:
Hard,wear-resistant
Purpose:
Used in material
crush,one part of ball grinding mill.
Application
domain:
Electrical
ceramic,magnetic material,pigment and dope,special cement, porcelain enamel and
glaze ect industrial line.
In a word,the mill pot
have good chemical stability and wear-resistance.It is used in crushing various
chemical and industrial products,medicament,rare earth material and various
silicate material.
Specification
table of ceramic grinding pot:
|
Item |
Model
&
Specification |
Capacity |
Outer
size:diameter x height |
Appro.net
weight
(in
kgs) |
|
Ceramic grinding
pot |
XLL
size |
30-40L |
400*600 |
|
|
XL
size |
18-18.5 |
300*400 |
18 |
|
L
size |
15-16 |
300*330 |
14~15 |
|
One-size |
10-14 |
270*320 |
11 |
|
Two-size |
5-6.5 |
220*260 |
9 |
|
Three-size |
3-5 |
180*250 |
6 |
|
Four-size |
1.5 |
150*180 |
|
|
Five-size |
1 |
130*170 |
5 |
Other
pot example:
|
Item |
Size(mm) |
|
Plain
porcelain side placket big grinding tank |
Φ400*600 |
|
10 kgs plain
porcelain top placket rubber stop grinding tank |
Φ300*400 |
|
10 kgs plain
porcelain top placket porcelain lid grinding pot |
|
7.5 kgs
plain porcelain top placket rubber stop grinding tank |
Φ300*360 |
|
7.5 kgs
plain porcelain top placket porcelain lid grinding pot |
|
5 kgs plain
porcelain top placket rubber stop grinding tank |
Φ250*300 |
|
5 kgs plain
porcelain top placket porcelain lid grinding pot |
|
3 kgs plain
porcelain top placket rubber stop grinding tank |
Φ200*250 |
|
3 plain
porcelain top placket porcelain lid grinding pot |
|
1.5 kgs
plain porcelain top placket rubber stop grinding tank |
Φ160*230 |
|
1.5 plain
porcelain top placket porcelain lid grinding pot |
|
1 kgs plain
porcelain top placket rubber stop grinding tank |
Φ150*200 |
|
1 plain
porcelain top placket porcelain lid grinding pot |
|
0.1 kgs
plain porcelain top placket rubber stop grinding tank |
Φ120*160 |
|
0.1 plain
porcelain top placket porcelain lid grinding pot |
|
Plain
porcelain rapid grinding tank |
Φ120*100 |
|
Alumina
rapid grinding tank |
Φ120*100 |
|
Top placket
rubber stop sealed grinding tank |
|
Other
specifications:
190x250
220x260
230x300
200x280
220x290
120x170
